Products
15 standard parts, plus anything drawn to your specification. Filter by family, or send us a drawing for the parts that are not here.
Sandwich Anchor System, flat anchor
Stainless plate cast into the sandwich panel to tie the facing wythe back to the structural wythe through the insulation.
Lifting socket
Threaded socket for bolt-on lifting, with a cross hole for a locking pin.
Lifting clutch
Reusable clutch for lifting loops and anchors; releases under load only by hand.
Lifting loop
Wire-rope loop with a pressed ferrule, cast into the panel and cut after lifting.
Wire loop box
Plastic recess box that keeps the loop clean and flush with the concrete face.
Sandwich wall connector pin
Ø4 stainless wire pin that ties the structural and facing wythes through the insulation.
Dry raised floor system
Developed in 2018: a dry-laid raised floor on adjustable pedestals, with a service void that stays accessible.
Prefabricated acoustic partition
Double-cavity steel-stud partition with 12 mm acoustic board: services pass through the studs and the wall weighs a third of masonry.
Worm-drive hose clamp
American-type clamp with a 1/2" band and a hardened screw; W1 to W4 grades.
Quick-release hose clamp
Spring-loaded clamp for filters and intake lines; opens and closes without tools.
Aluminium camlock couplings
Cam and groove couplings in eight body types, 1/2" to 8": a cam arm locks the joint, so hoses connect without tools.
Spherical head anchor
Spherical head cast into the panel, plain or zinc plated, in lengths from 35 mm up to 1,200 mm.

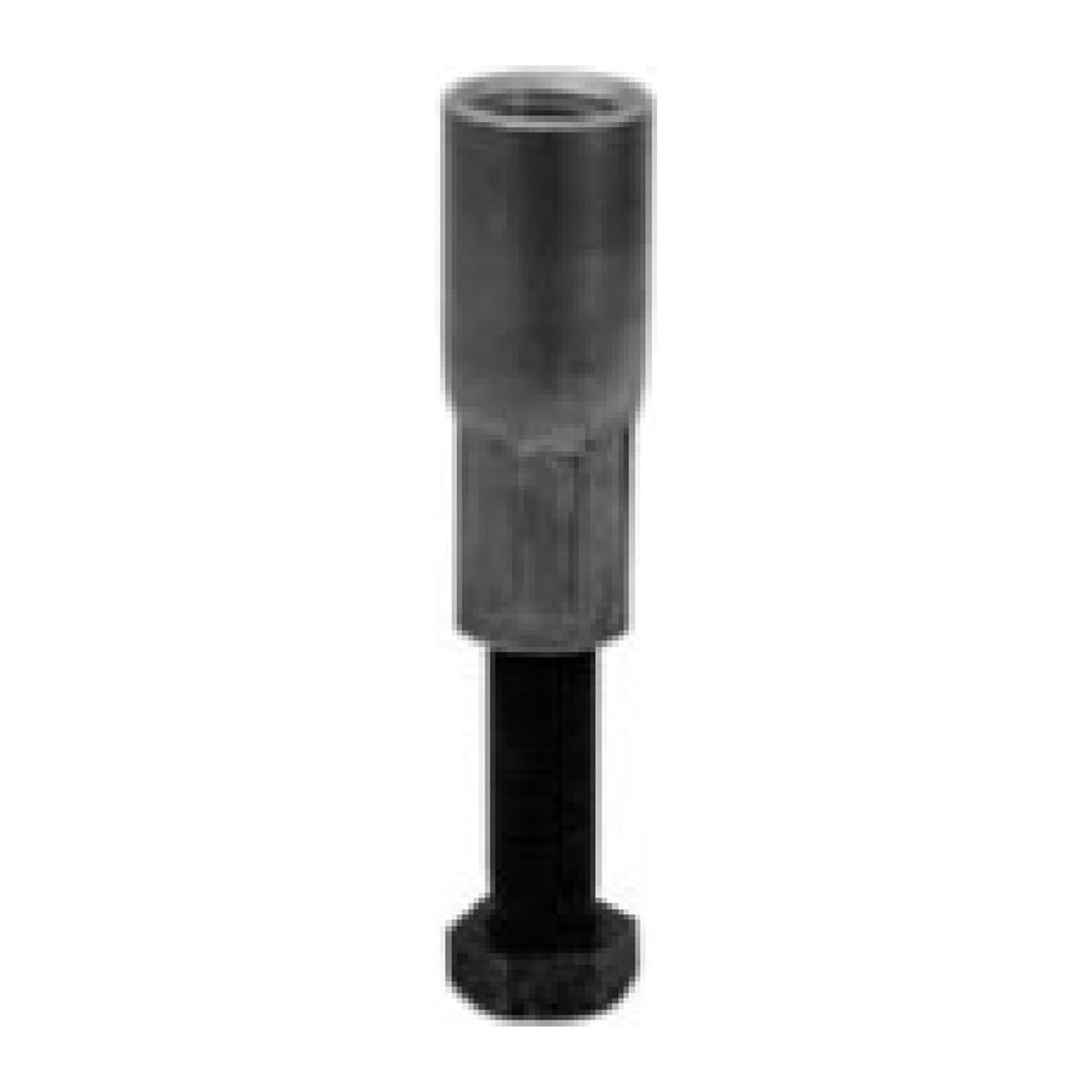

Bolt anchor
Short threaded anchor for thin flat slabs: the bolt head transfers the load deep into the concrete.

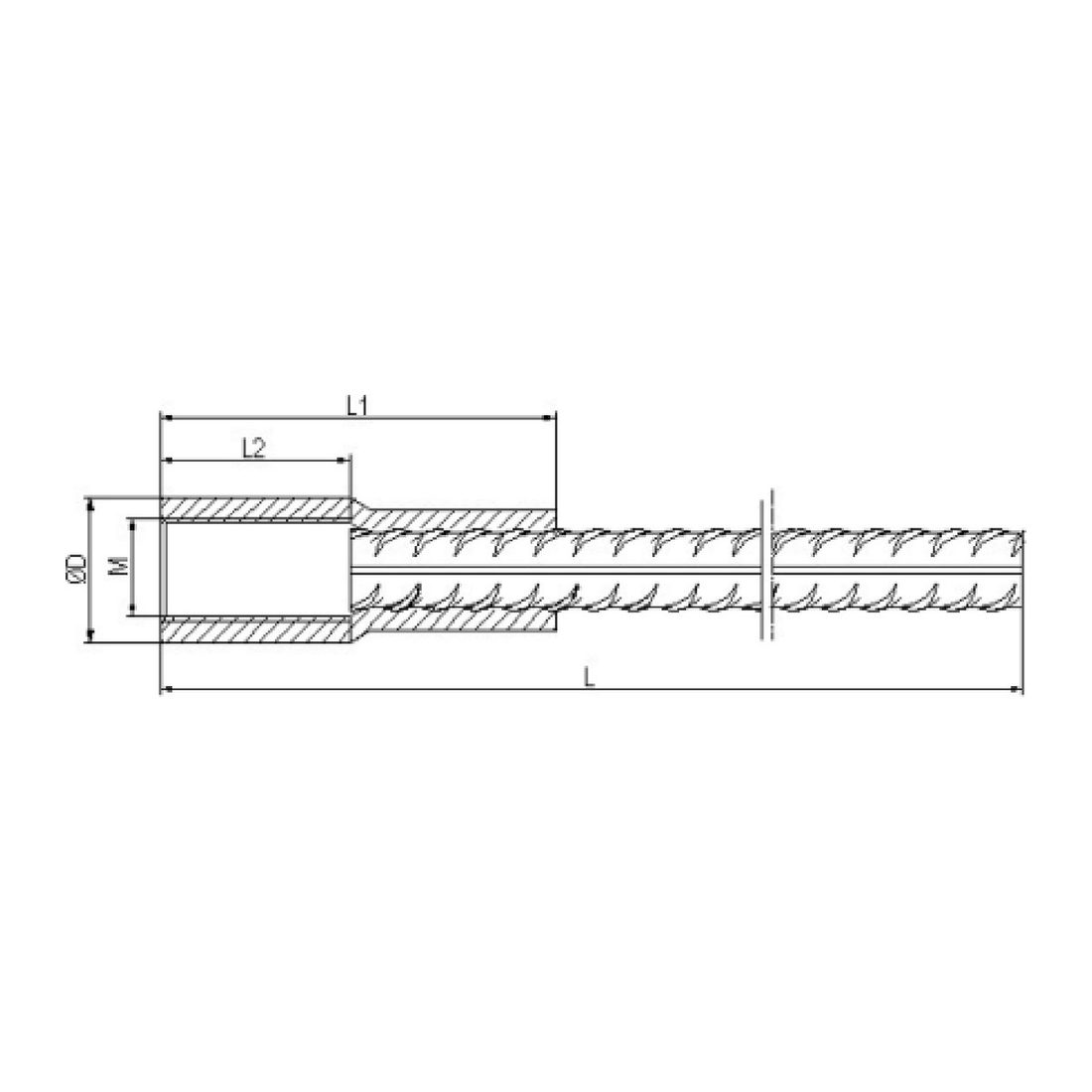

Socket anchor with straight rebar
Threaded socket welded to a ribbed bar; anchorage comes from bond along the bar, for thin panels and large volumes.

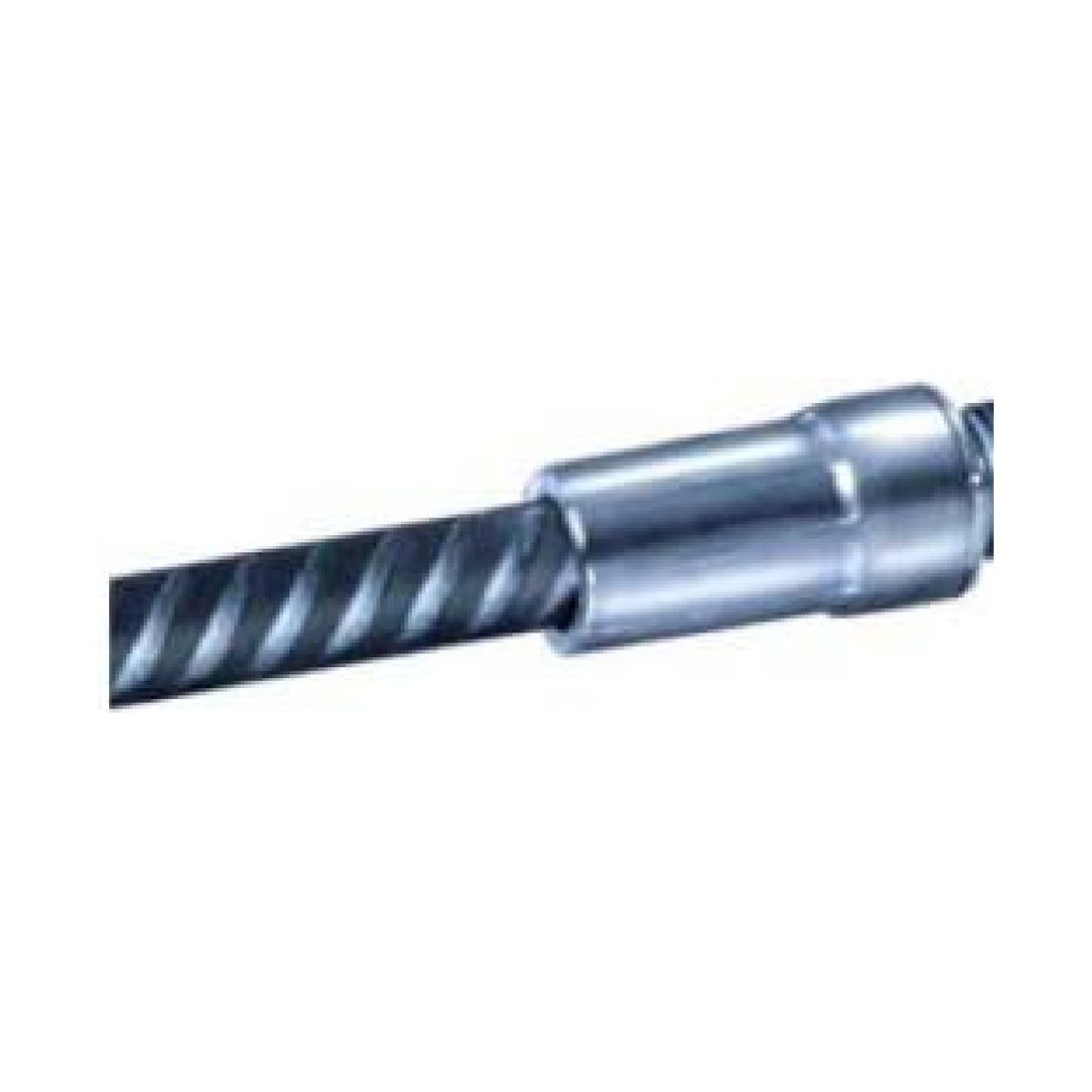

Rebar coupler
Threaded coupler joining bars of the same diameter — a mechanical joint with no site welding.
No products in this family yet.
+Custom
Not in the catalogue? That is most of what we do.
Send a drawing, a sample or a photo with dimensions. We will quote the machining route, the material grade and the packing, and tell you what we would change before cutting tooling.
- Carbon steel, stainless, zinc-plated
- Turning, milling, stamping, welding
- From 500 pieces
- Sample in 7–10 days
+Catalogue
Every SKU at a glance.
Loads, sizes and what each part is used for — the whole range on one page.
| Family | SKU | Product | Key spec | Used for |
|---|---|---|---|---|
| Precast concrete components | FA-T | Sandwich Anchor System, flat anchor | Outer leaf 50 – 60 mm | Stainless plate cast into the sandwich panel to tie the facing wythe back to the structural wythe through the insulation. |
| T-series | Spherical head anchor | Load 1.3 – 32 t | Spherical head cast into the panel, plain or zinc plated, in lengths from 35 mm up to 1,200 mm. | |
| LS-M | Lifting socket | M12 – M30 | Threaded socket for bolt-on lifting, with a cross hole for a locking pin. | |
| LC-2.5 | Lifting clutch | 2.5 t per unit | Reusable clutch for lifting loops and anchors; releases under load only by hand. | |
| LL-1.3 | Lifting loop | 1.3 t per loop | Wire-rope loop with a pressed ferrule, cast into the panel and cut after lifting. | |
| WLB-50 | Wire loop box | Ø 50 mm recess | Plastic recess box that keeps the loop clean and flush with the concrete face. | |
| Rd-BA | Bolt anchor | Load 0.5 – 4.0 t | Short threaded anchor for thin flat slabs: the bolt head transfers the load deep into the concrete. | |
| SA-R | Socket anchor with straight rebar | Load 0.5 – 12.5 t | Threaded socket welded to a ribbed bar; anchorage comes from bond along the bar, for thin panels and large volumes. | |
| KSD | Rebar coupler | M12 – M48 | Threaded coupler joining bars of the same diameter — a mechanical joint with no site welding. | |
| SWP-8 | Sandwich wall connector pin | Ø 4 mm · H 160 – 220 | Ø4 stainless wire pin that ties the structural and facing wythes through the insulation. | |
| Prefabricated decoration | DF-600 | Dry raised floor system | 20 mm panel · 50–80 mm void | Developed in 2018: a dry-laid raised floor on adjustable pedestals, with a service void that stays accessible. |
| PW-120 | Prefabricated acoustic partition | Double cavity · 120 mm | Double-cavity steel-stud partition with 12 mm acoustic board: services pass through the studs and the wall weighs a third of masonry. | |
| Hardware fastening | HC-W1 | Worm-drive hose clamp | Ø 8 – Ø 200 | American-type clamp with a 1/2" band and a hardened screw; W1 to W4 grades. |
| HC-Q2 | Quick-release hose clamp | Ø 25 – Ø 120 | Spring-loaded clamp for filters and intake lines; opens and closes without tools. | |
| Fluid couplings | CAM-AL | Aluminium camlock couplings | 1/2" – 8" · 8 types | Cam and groove couplings in eight body types, 1/2" to 8": a cam arm locks the joint, so hoses connect without tools. |
Common questions
The questions that come up in every RFQ. Anything else — send a drawing.
How do I choose between a flat anchor, a socket and a spherical head anchor?
Flat anchors (FA-T) sit in the panel face and suit thin, flat panels. Sockets (LS-M) take a bolted clutch and are cast into the edge or face for repeated lifts. Spherical head anchors (T-series) are forged, come in four load classes up to 5 t and take a ring clutch.
What is the difference between a lifting loop and a wire loop box?
The loop is the wire-rope assembly that lifts the panel and is cut off afterwards. The box is a plastic recess former that keeps the loop clean and flush with the concrete face.
Can you make a size that is not in the catalogue?
Yes — the catalogue covers standard sizes; non-standard parts are made to drawing from 500 pieces, with a sample in 7–10 days.
