01 / SWP-8
Precast concrete components

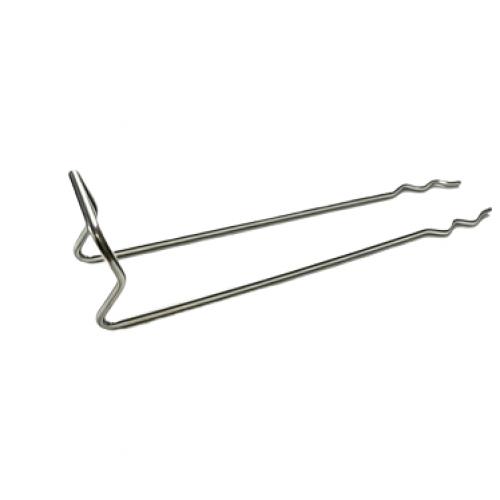

Sandwich wall connector pin
SKU SWP-8 · Ø 4 mm · H 160 – 220
Ø4 stainless wire pin that ties the structural and facing wythes through the insulation.
- Material
- AISI 304 stainless wire
- Diameter
- Ø4.0 mm
- MOQ
- 500 pcs · stock items from 1 pallet
Values shown are typical for the standard range. Final dimensions are confirmed on your drawing and panel design.
A Ø4 stainless wire pin pushed through the insulation before the outer leaf is cast. The N type hooks onto mesh on both faces; the L type is bent 90° where it has to lie flat against the facing mesh. Both ends are corrugated, so the concrete grips them instead of pulling straight out.
Standard parts ship from stock in Ningbo. Non-standard variants are machined to drawing, with the first article sent for approval before the batch runs.
- Ø4.0 mm 304 wire, heights 160 – 220 mm
- N type (U-shape) and L type (bent 90°)
- Insulation 30 – 100 mm, outer leaf 50 – 60 mm
- Positions set by the panel layout drawing
- Packing to your requirement — 25 kg cartons, private label on request
| 01Material | AISI 304 stainless wire |
|---|---|
| 02Diameter | Ø4.0 mm |
| 03Types | N (U-shape) and L (bent 90°) |
| 04Heights | 160 / 180 / 200 / 220 mm |
| 05Insulation depth | 30 – 100 mm |
| 06Outer leaf | 50 – 60 mm |
| 07Packing | 25 kg per carton, quantity to suit the order |
Spacing values are the maximum for a 60 mm outer leaf; the layout drawing governs on each panel.
Lay the structural mesh and mark pin positions from the layout drawing.
Place the insulation board and push each pin through it.
Tie the inner end to the structural mesh.
Tie the outer end to the facing mesh before casting.
Cast the outer leaf; check spacing and cover before stripping.
Download the installation sheet with the order. Our engineers will review your first installation drawing at no cost.
Site safety is the contractor’s responsibility. Follow the tie layout drawing and the stated anchorage depths.
Files are sent by email after a short review of the application. No registration required.
Common questions
The questions that come up in every RFQ. Anything else — send a drawing.
What material and finish do you supply?
AISI 304 stainless wire.
Which sizes can you supply?
160 / 180 / 200 / 220 mm. Other sizes are made to drawing.
How is the part packed?
25 kg per carton, quantity to suit the order.
What is the minimum order quantity?
500 pieces for standard items. Stock items can ship from one pallet.
How long does a custom part take?
Sample in 7–10 days, production 15–25 days after the drawing is approved.
What do you need to quote?
A PDF or STEP drawing, the material grade, the quantity and the destination port.
Which documents come with the goods?
Material certificates, inspection records and the packing list. Third-party test reports on request.
